Disclaimer

  • A factory reset is a LAST RESORT.
    • There is always a possibility there is stuck data that would be lost during the process
    • Confirmed any live transactions or SAFs needing processed
    • Confirm with Service/PH to determine need and next steps

Back to top

Factory Reset a Pax S300

  1. Power cycle the S300

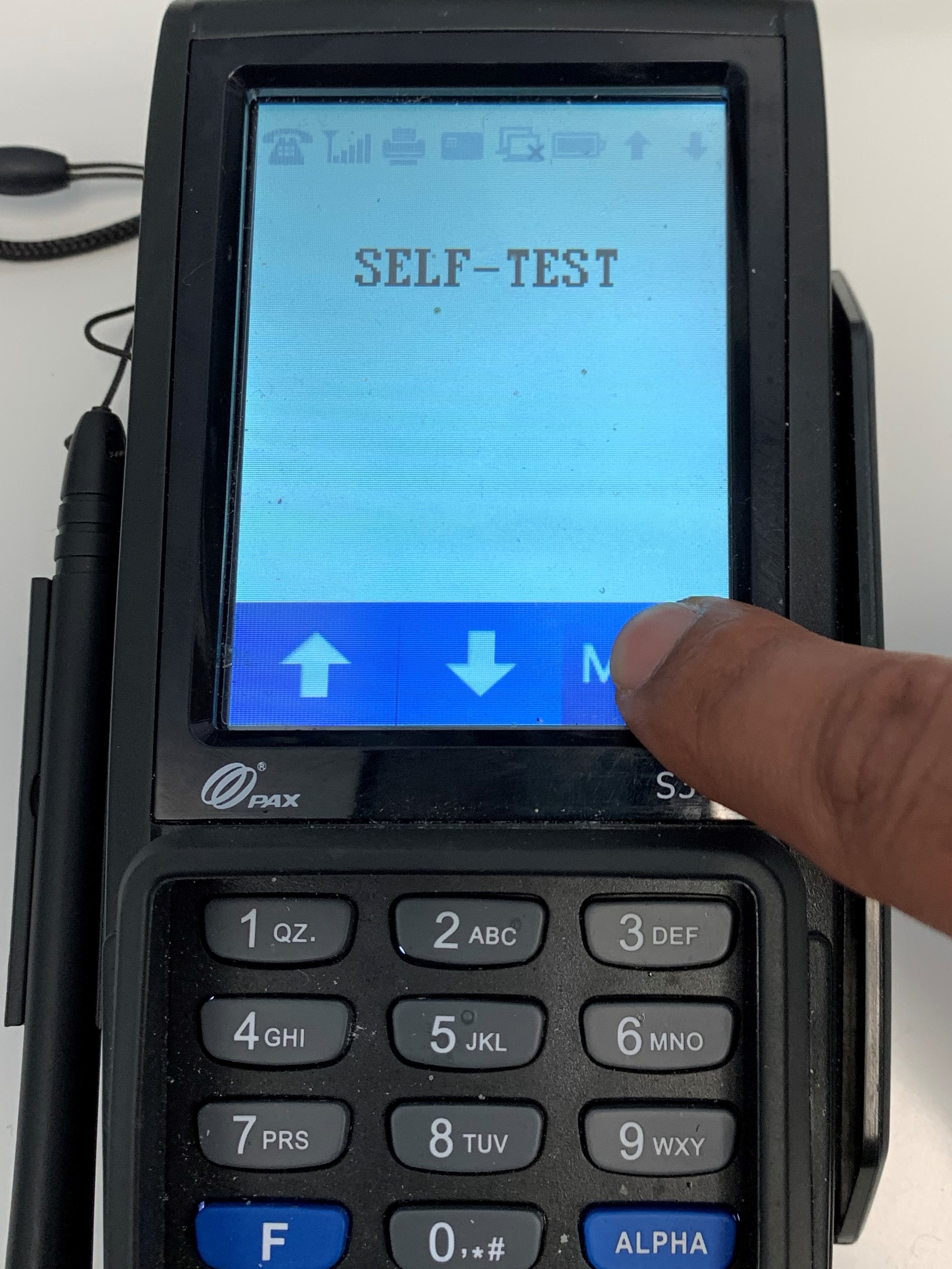

  2. During start up Hold down the Menu button

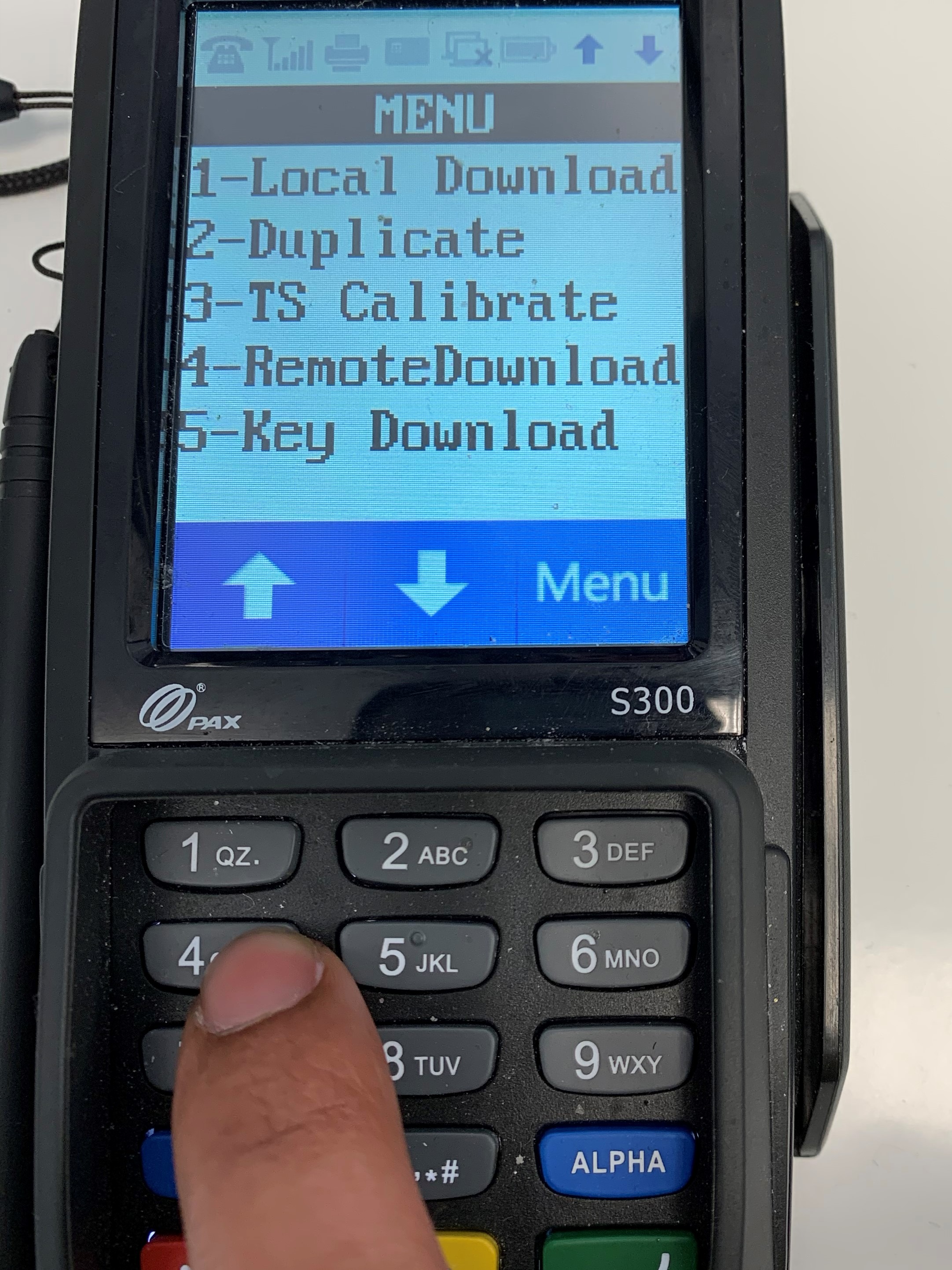

  3. Select #4 on the pin pad for Remote Download

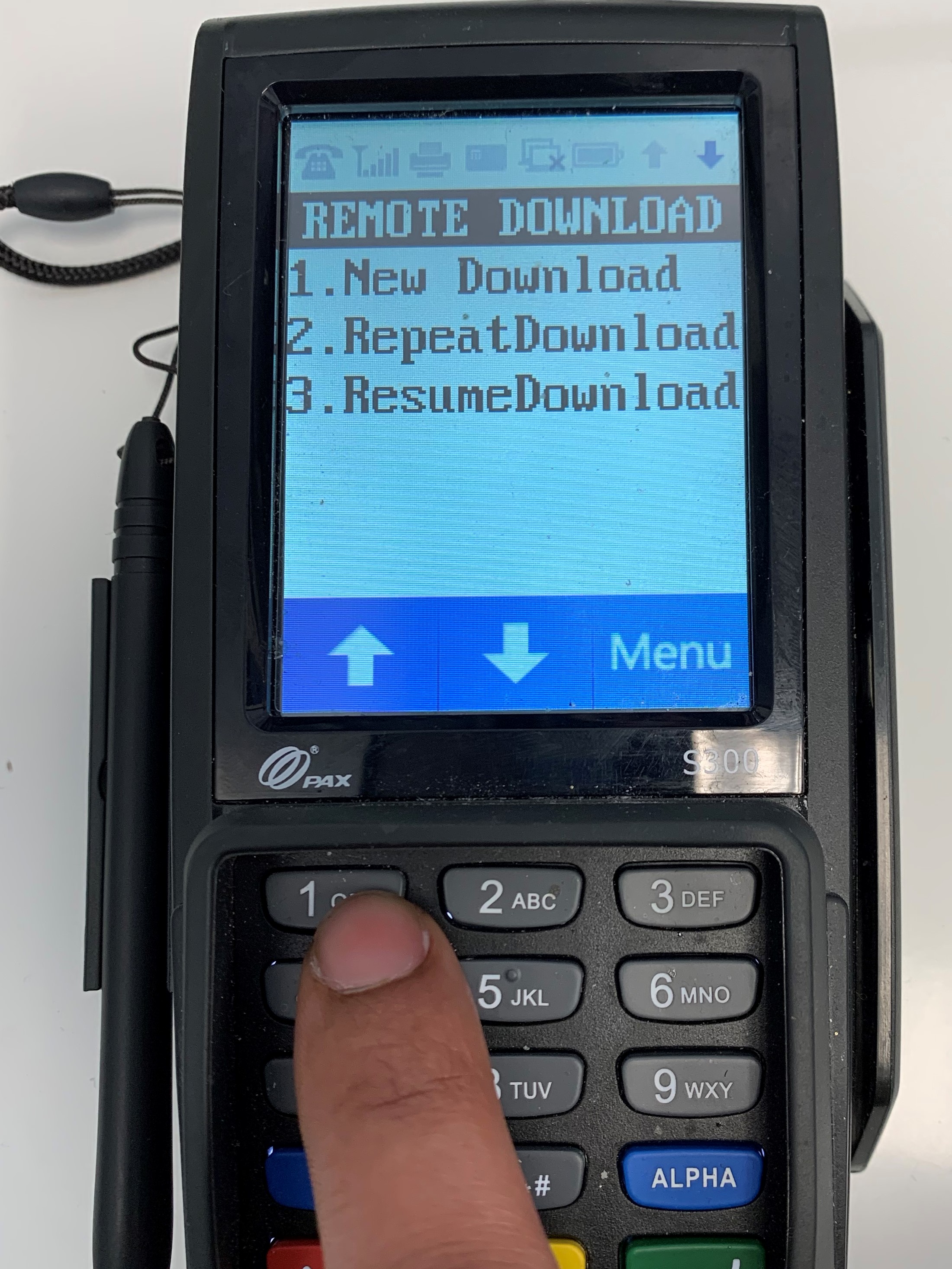

  4. Select #1 on the pin pad for New Download

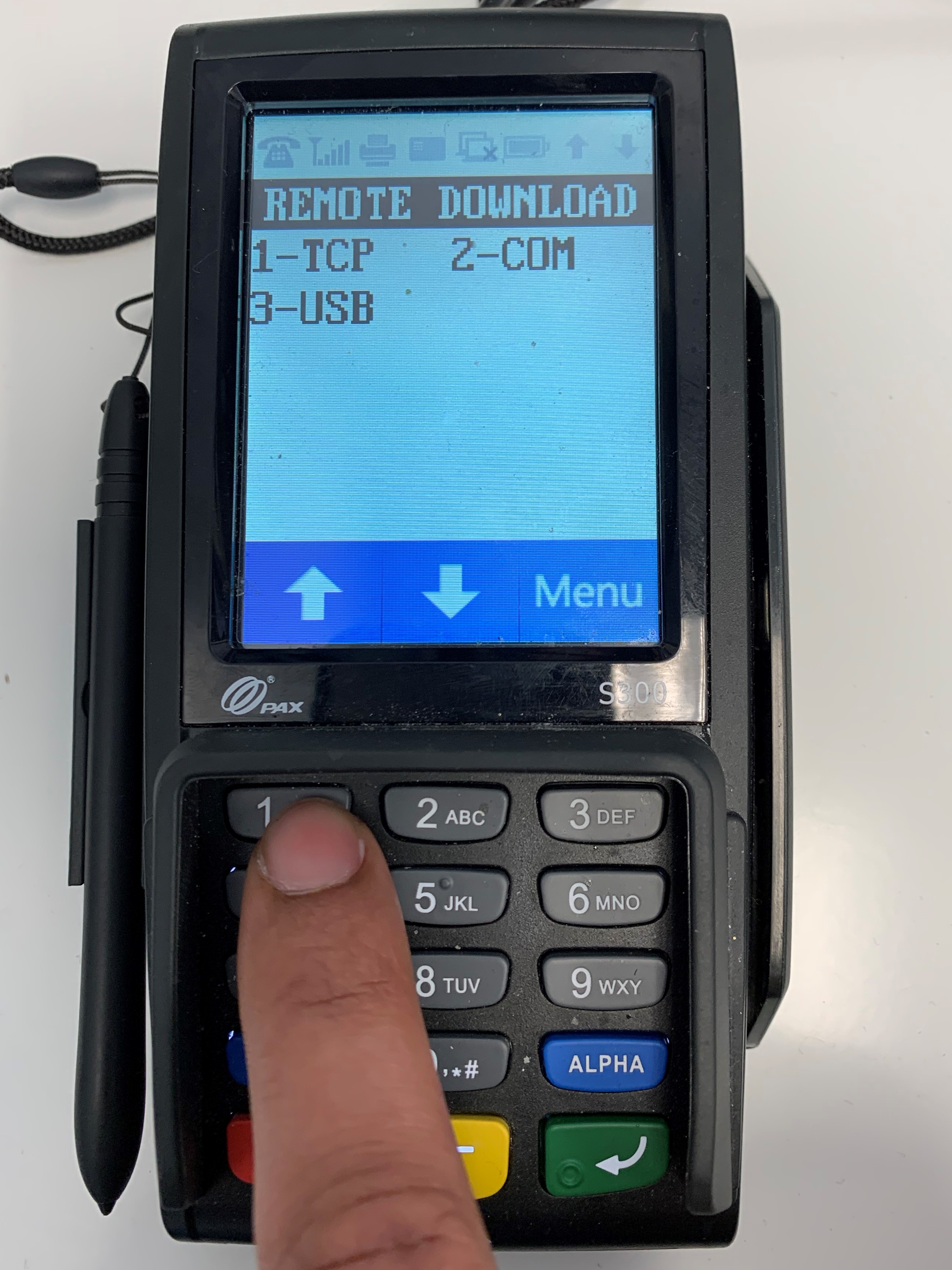

  5. Select #1 on the pin pad for TCP


  6. At this time enter the ip address. To enter the . select 1 and this press the ALPHA key until the . displays.

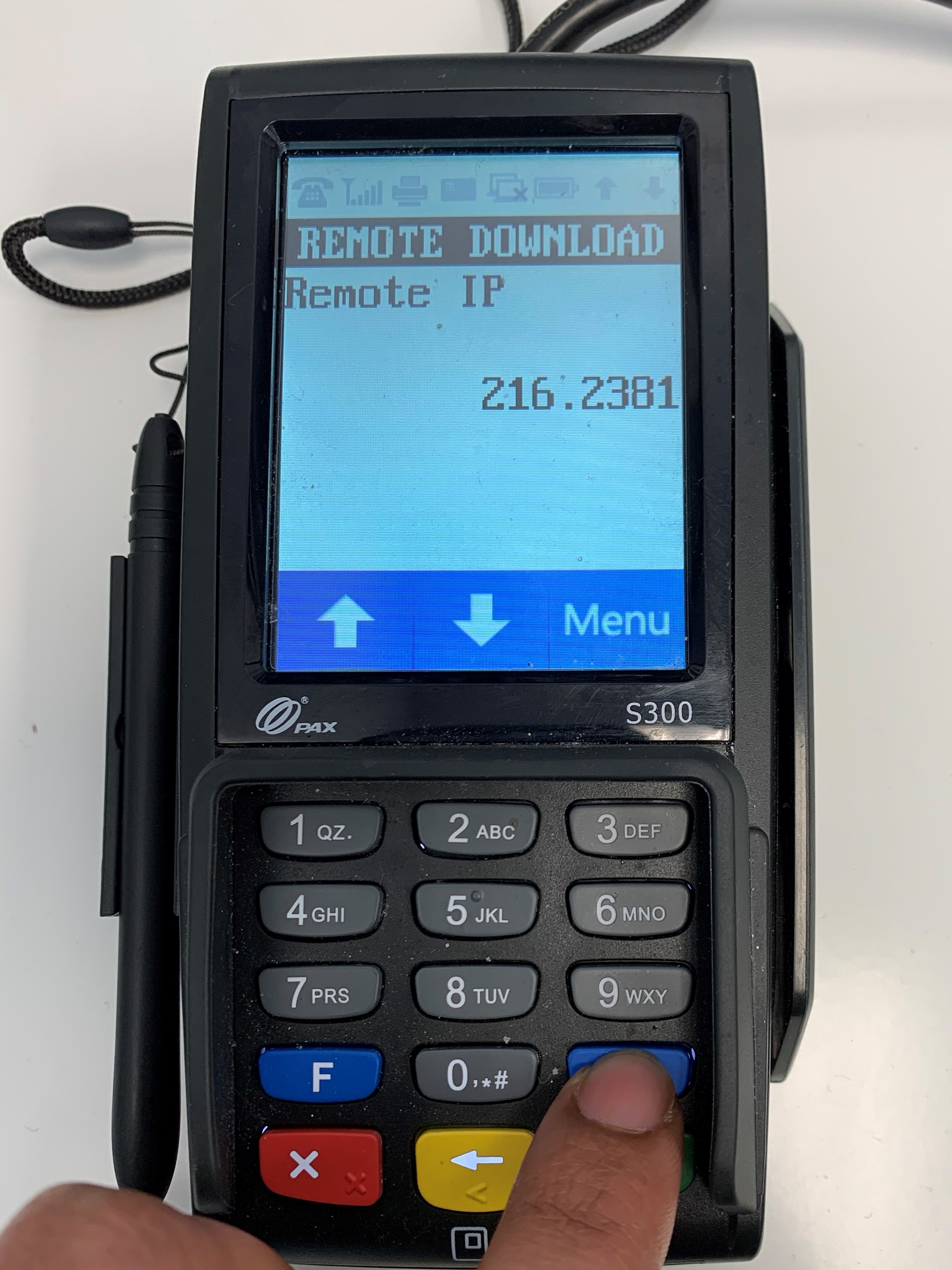

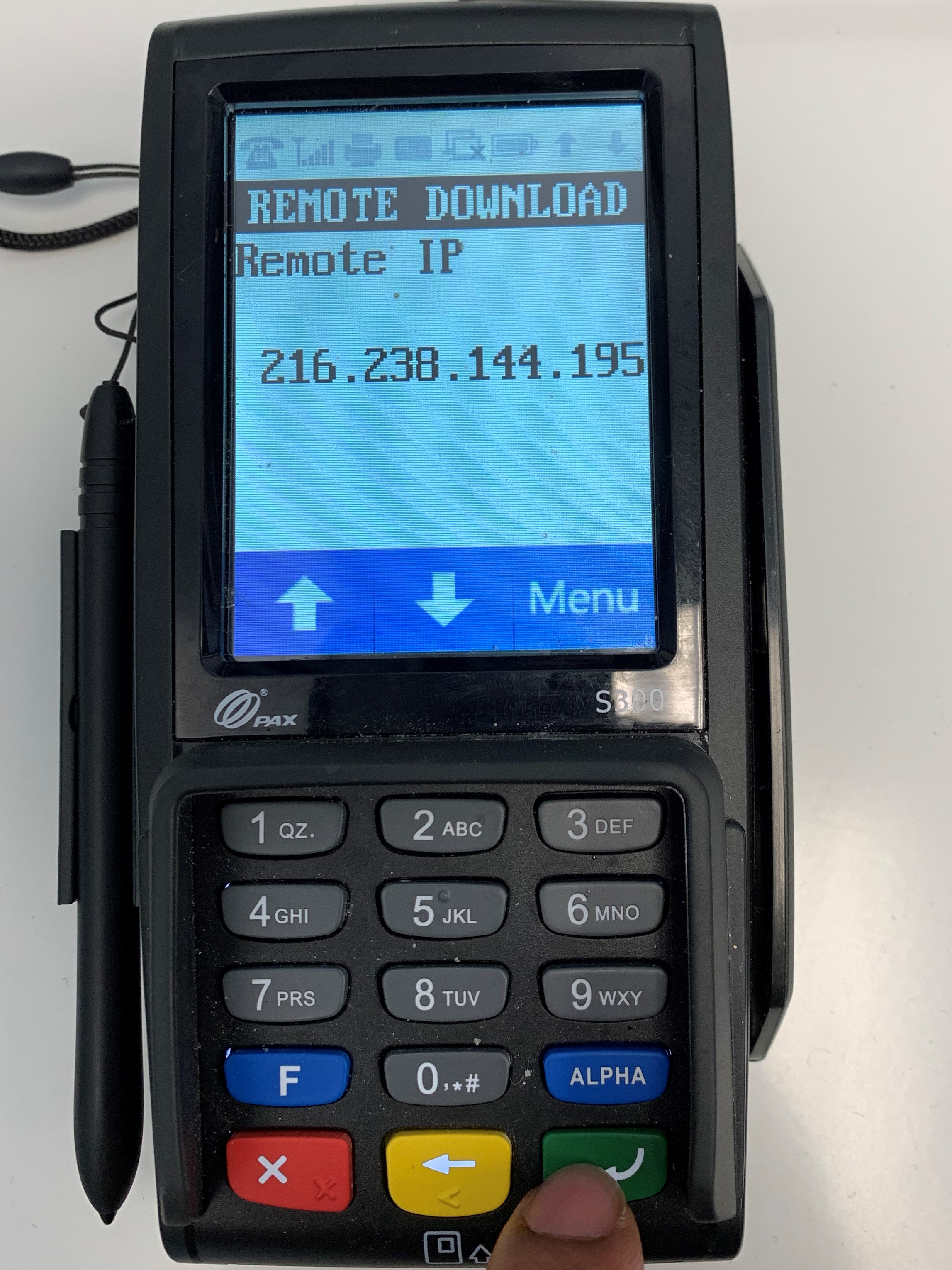

  7. Enter the following IP Address: 216.238.144.195


  8. Press the Green Enter Key.

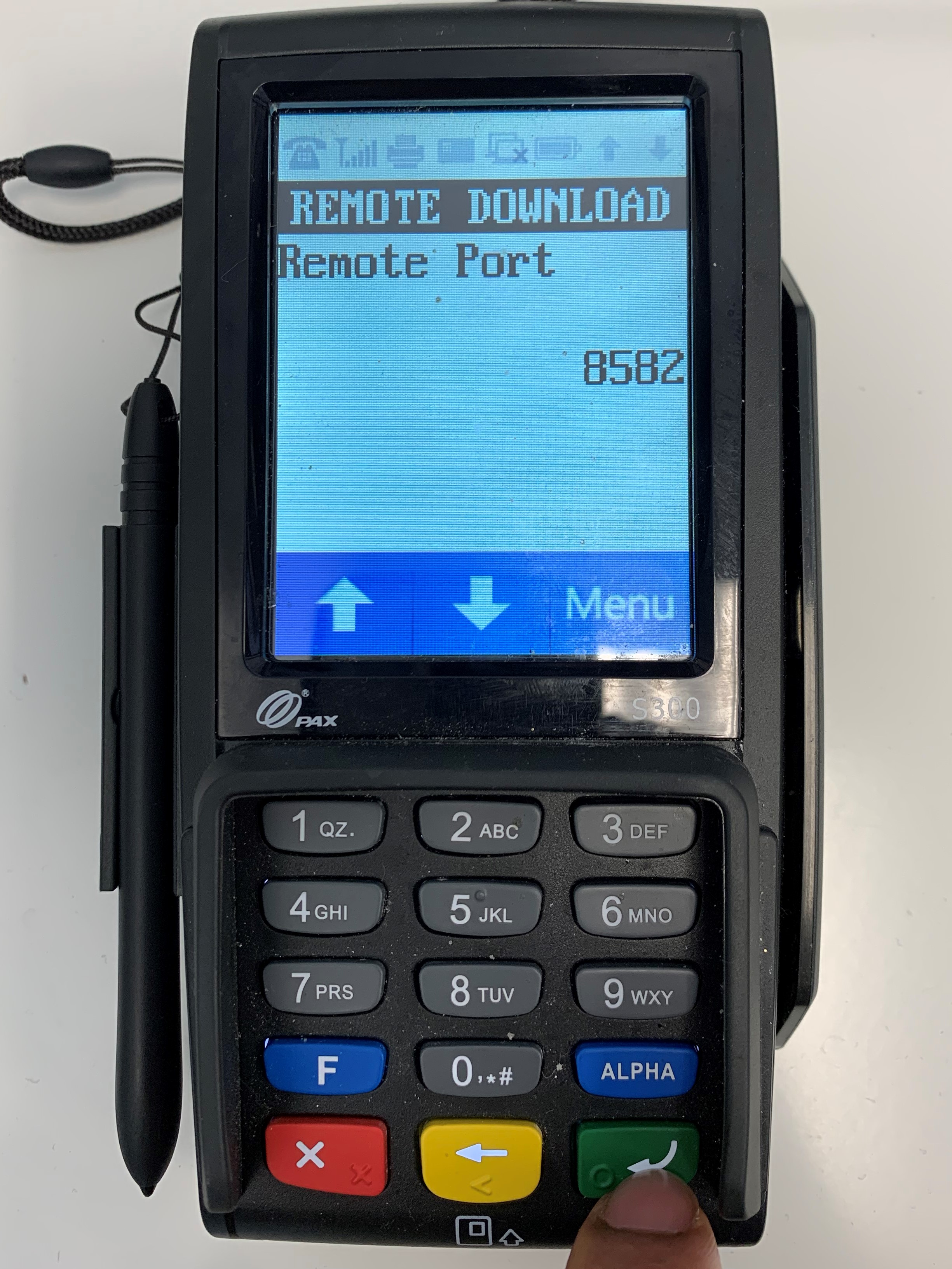

  9. Enter the port number: 8582


  10. Press the Green Enter Key.

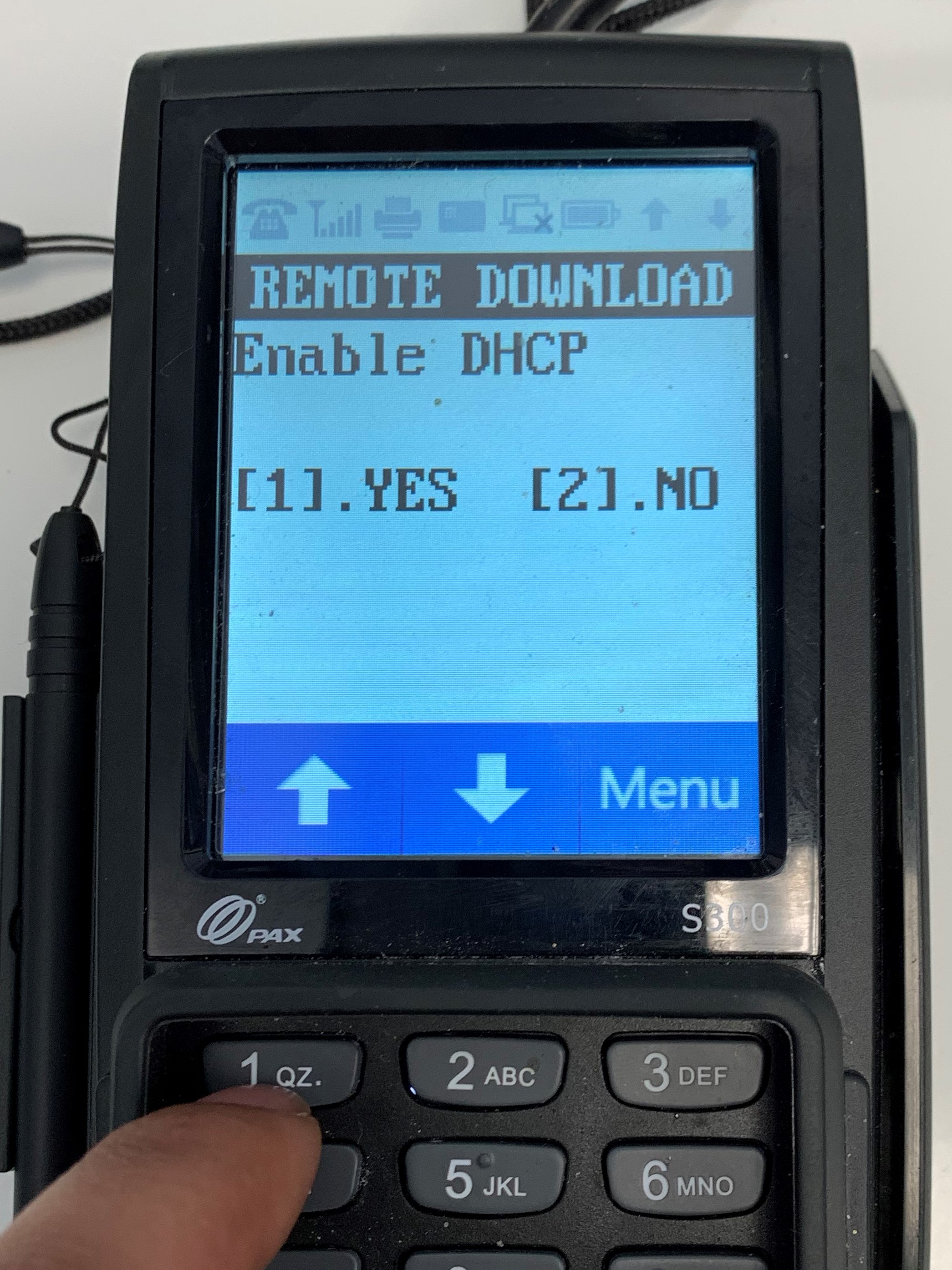

  11. Select #1 to enable DHCP

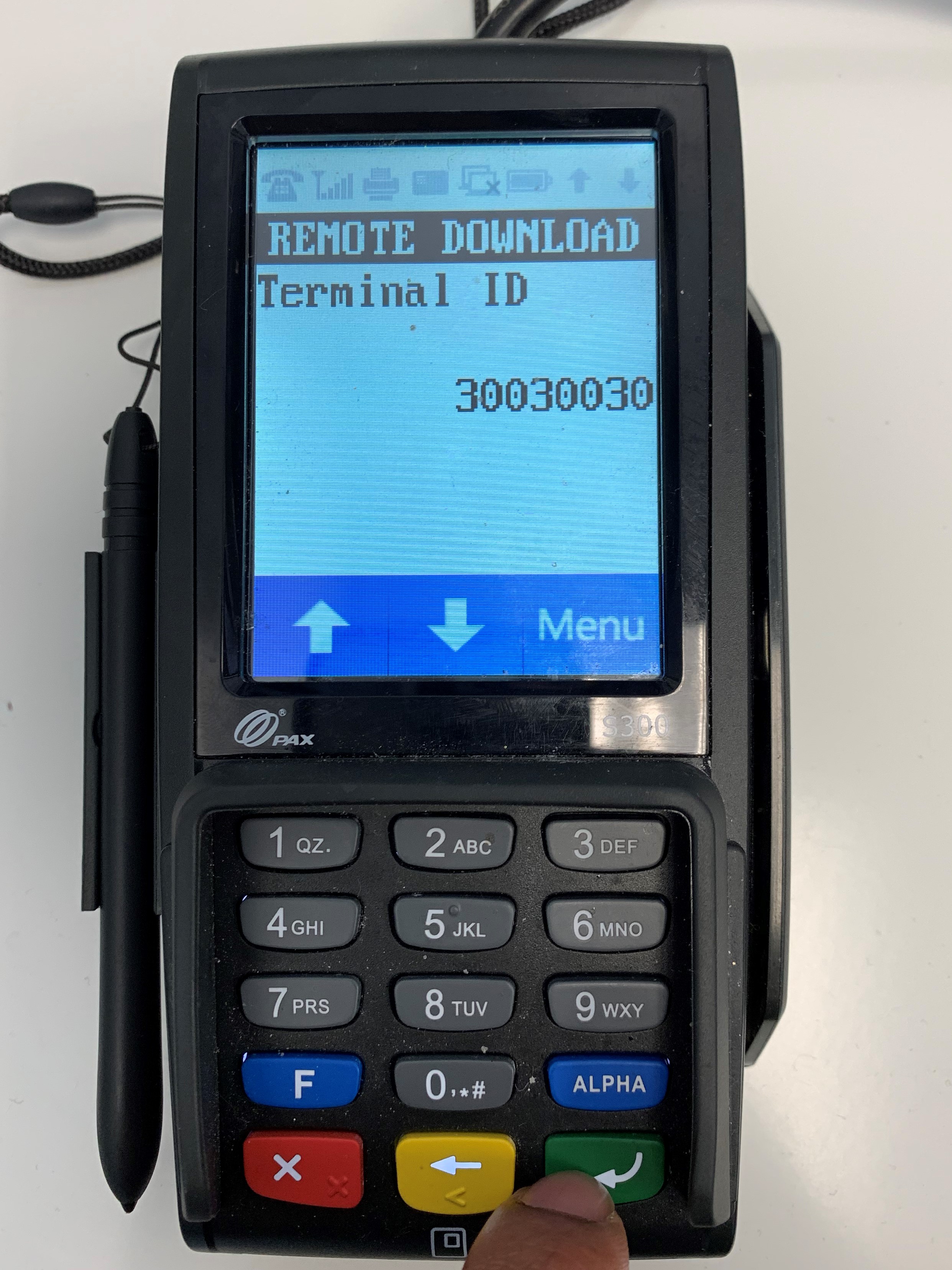

  12. Enter in the following Terminal ID: 30030030


  13. Press The Green Enter Key.

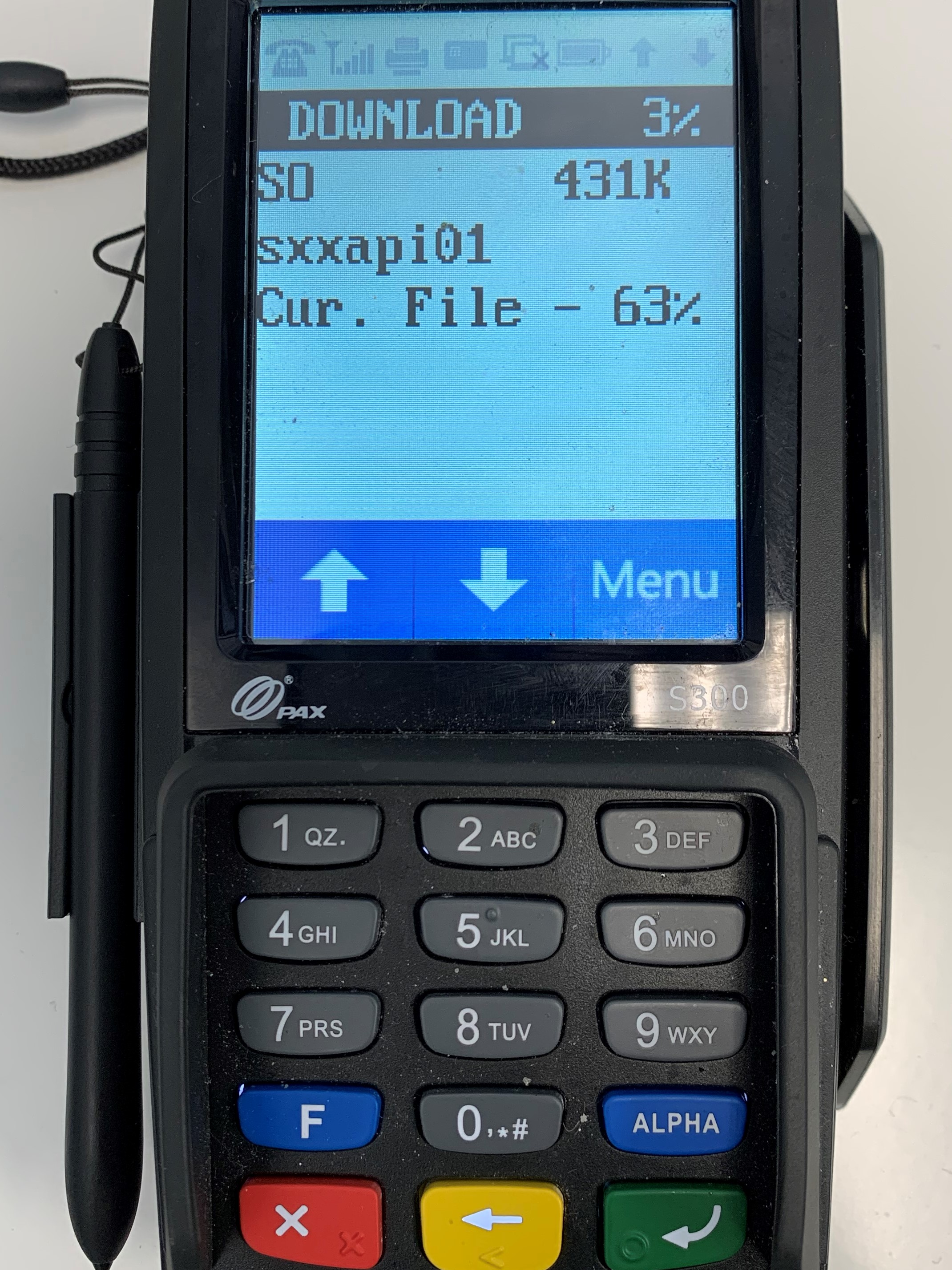

  14. The restore and download will begin at this time.
    • If the update fails Try again with the Terminal Id's in this order.
      • 30030040
      • 30030098
      • 30030097
      • 30030012
  15. After the download is complete, power cycle the PAX s300 device
