How do I test that com port is working for a scale?
For setup help for a scanner/scale combo: https://docs.google.com/document/d/10pTbnHAg6z0Wz9GRLf6W-vgWz1R2uWgn/edit
Step1: Download Microridge
- Download and install MicroRidge ComTestSerial port program
- Download the latest version from here: https://www.microridge.com/comtestserial.htm
- The installer Install_ComTestSerial...is alos located here: G:\Shared drives\[P] IT PRODUCTION\EzSoftware Install File Structure\OtherSupportFiles\CtKEmulator
- Identify the port the scale is plugged into.
- Check EZ Retail Version:
- Before 1.55.32 Proceed to Step 2.
- 1.55.32 or after: Review this google doc: https://docs.google.com/document/d/17Fvkg4OaAEMgLwjHf5geCA-j3P7amNh-CPnahmzg4iQ/edit?tab=t.0
Step 2: Legacy Testing
- Start the MicroRidge ComTestSerial program

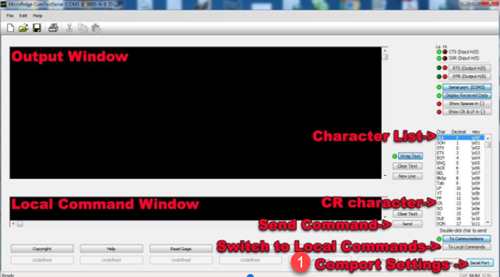

- Click the Serial port button on the bottom right. then configure the comport settings.
- Baud Rate will be 9600
- Stop Bits will be 1
- Parity, Data Bits will be dependent on the scale.

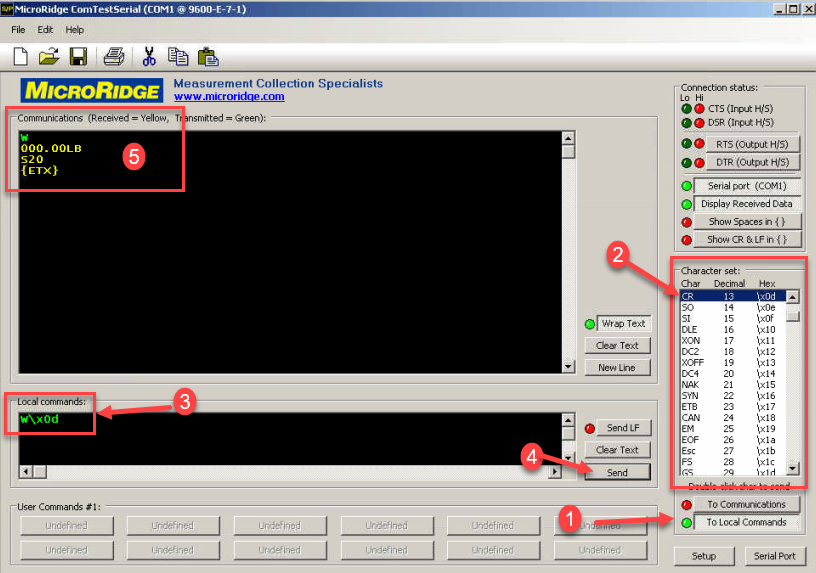

- After the come settings are selected configure the testing commands
- Click the "To Local Commands" Button
- In the character set list, find W and double click it. The "W" will be added to the Local Command Window. Do the same for the CR character. When done the command should look like this "W\x0d"
- Click the send button for the Local Command. A green W will disable in the output window. If the comport and scale are working, and settings are correct, it will be followed by yellow out text from the scale.
