TABLE OF CONTENTS
- Things to do before device is powered on
- What to expect after powering on your device
- Setting up the WTI Router WIFI

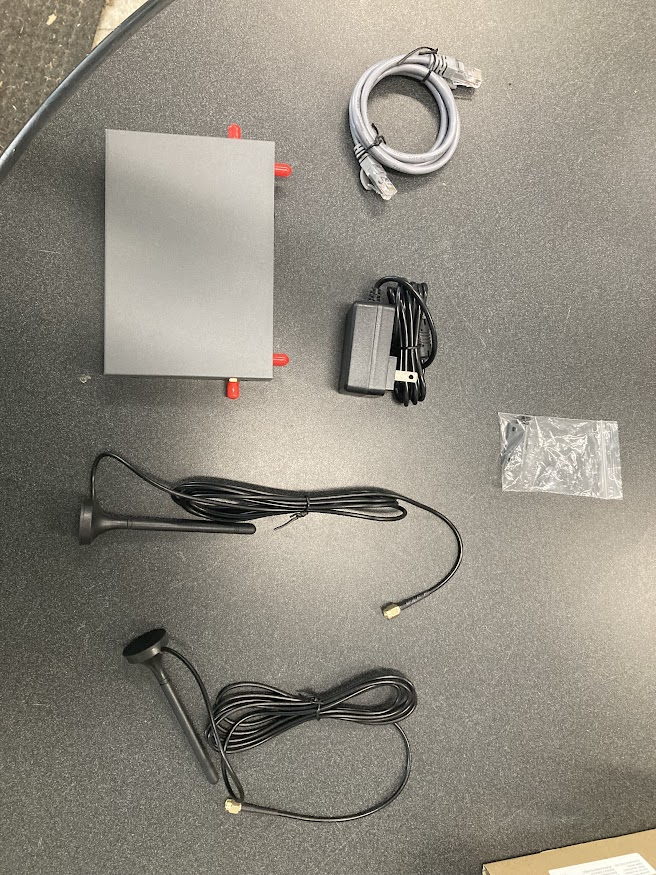

What is included in the packaging of your WTI Router 1x WTI Router 2x WIFI Antenna 1x power supply Optional 1x cat5 cable 1x bag of mounting parts
Things to do before device is powered on
- Steps on the ISP Modem
- Locate an unused port on the modem and connect one of the included ethernet cable to this modem.
- On the WTI Router
- The other end of the ethernet came from above will need to be connected to the WAN port of the WTI Router
- The device now ready to power on, Proceed to the next section.

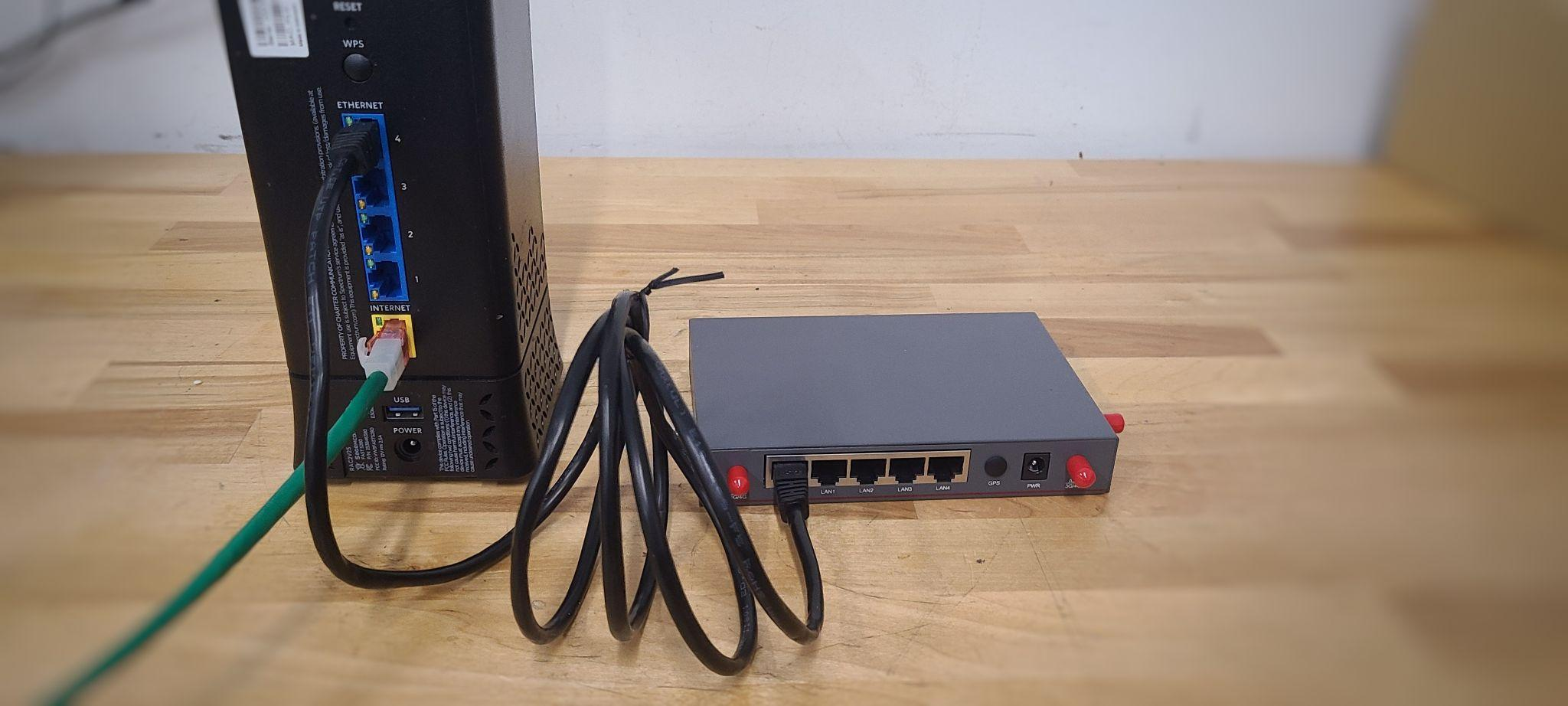

Connection of ISP modem to WTI Router
What to expect after powering on your device
- When the device powers on you will see lights on the port you plugged in.
- Lights should appears on
- NET1
- NET2
- WAN
- Any other LAN Ports that have a Cat5 cable connected.
- Lights should appears on

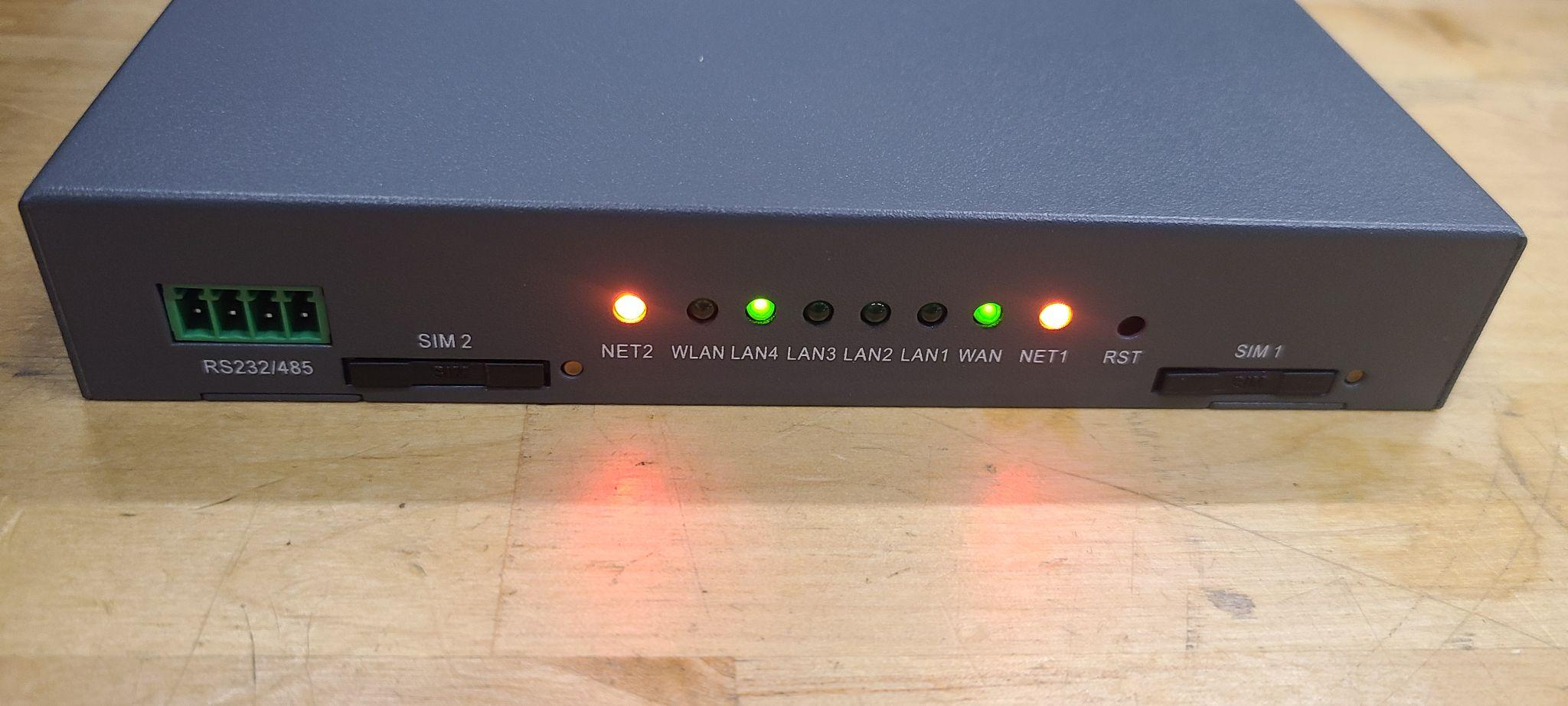

Example of lights on WTI
The WTI Router should now be set up and ready. If APs were not provided and location will be using the WTI for the WIFI network. Proceed to the next section
Setting up the WTI Router WIFI
- Locate the the 2 WIFI antennas and remove the red caps on the back side of the WTI Router.
- Attach the cables to the mount ports.
- These antennas have a magnetic base and can be used to attach to surfaces for mounting away from other electronics.
- It is preferable that they are mounted above anything that is able to block the signal for wireless.

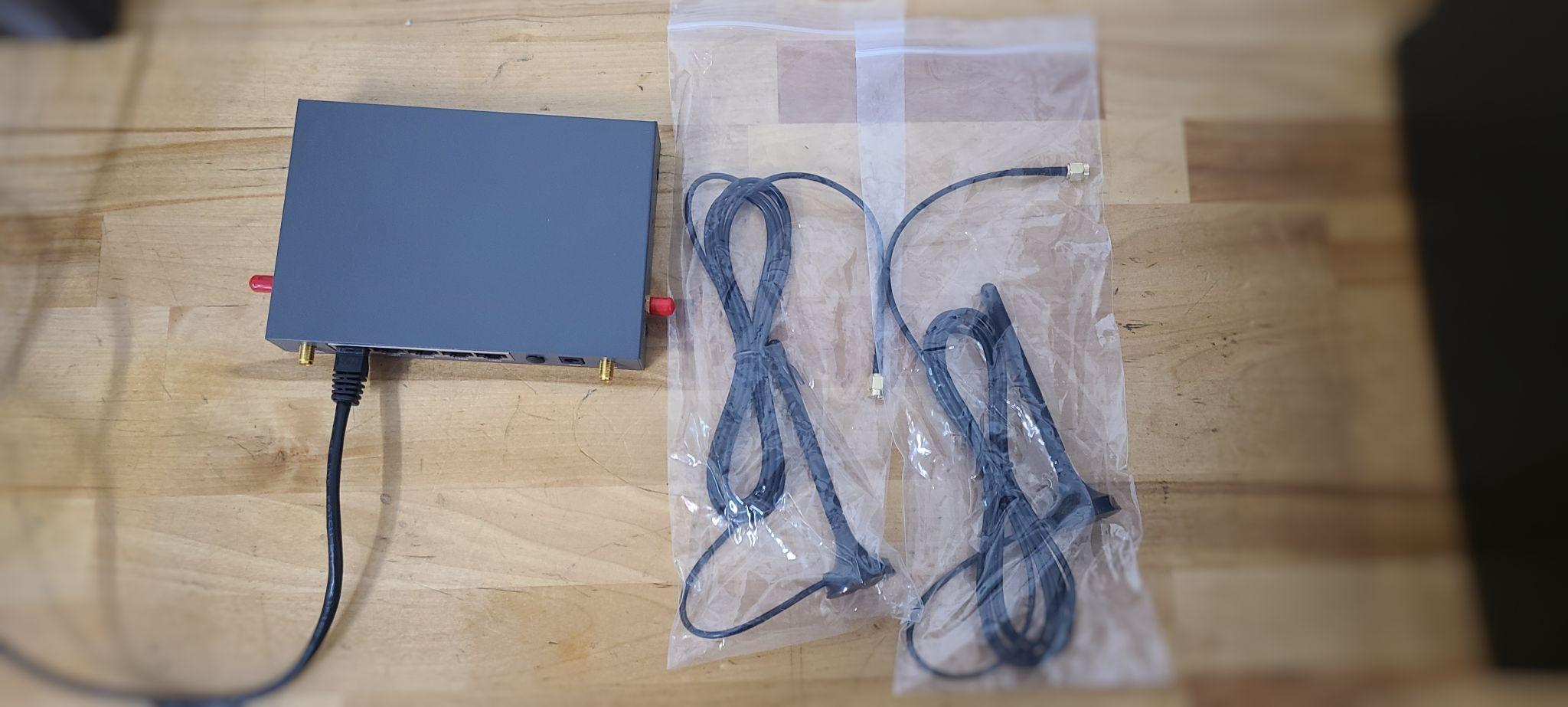

Wireless antennas and WTI with red caps removed

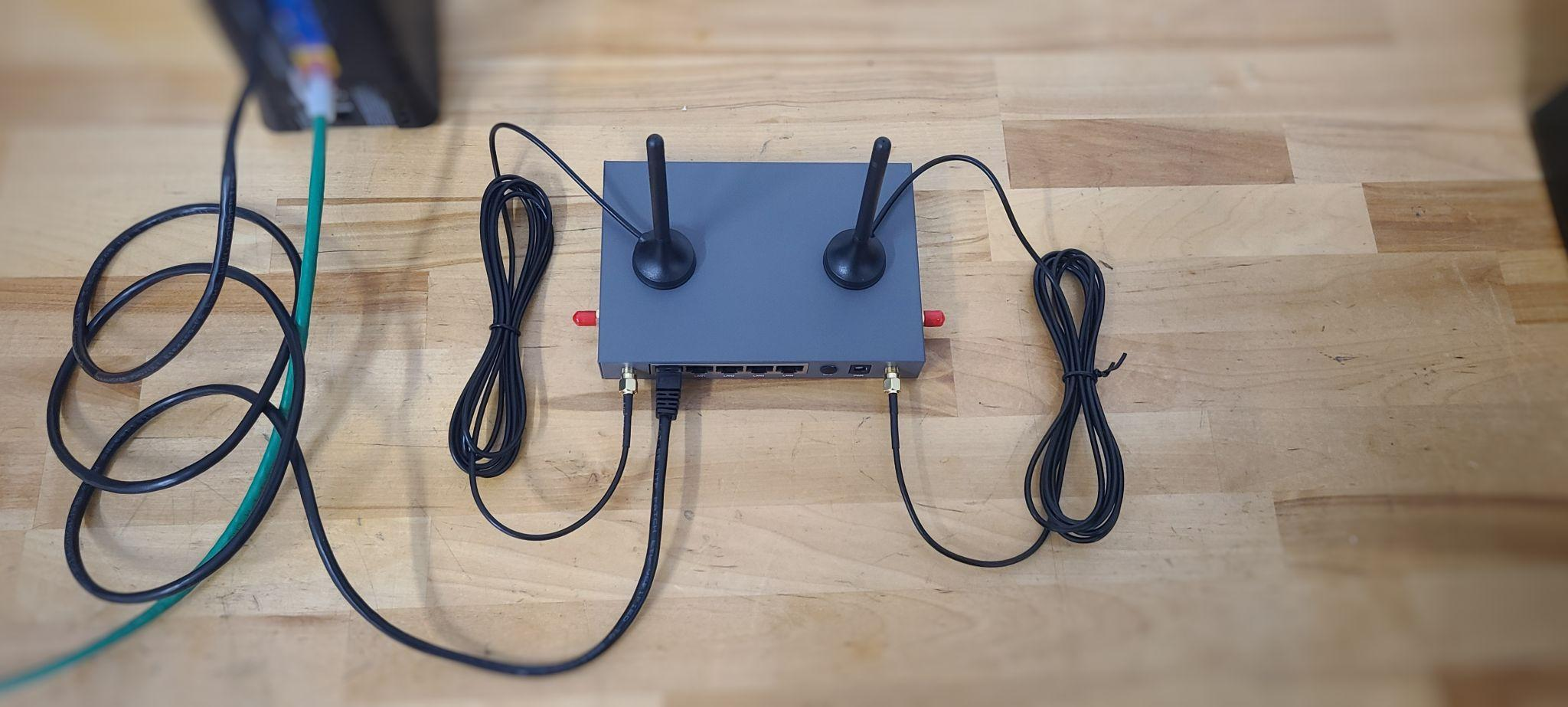

WTI Router with Wifi connections

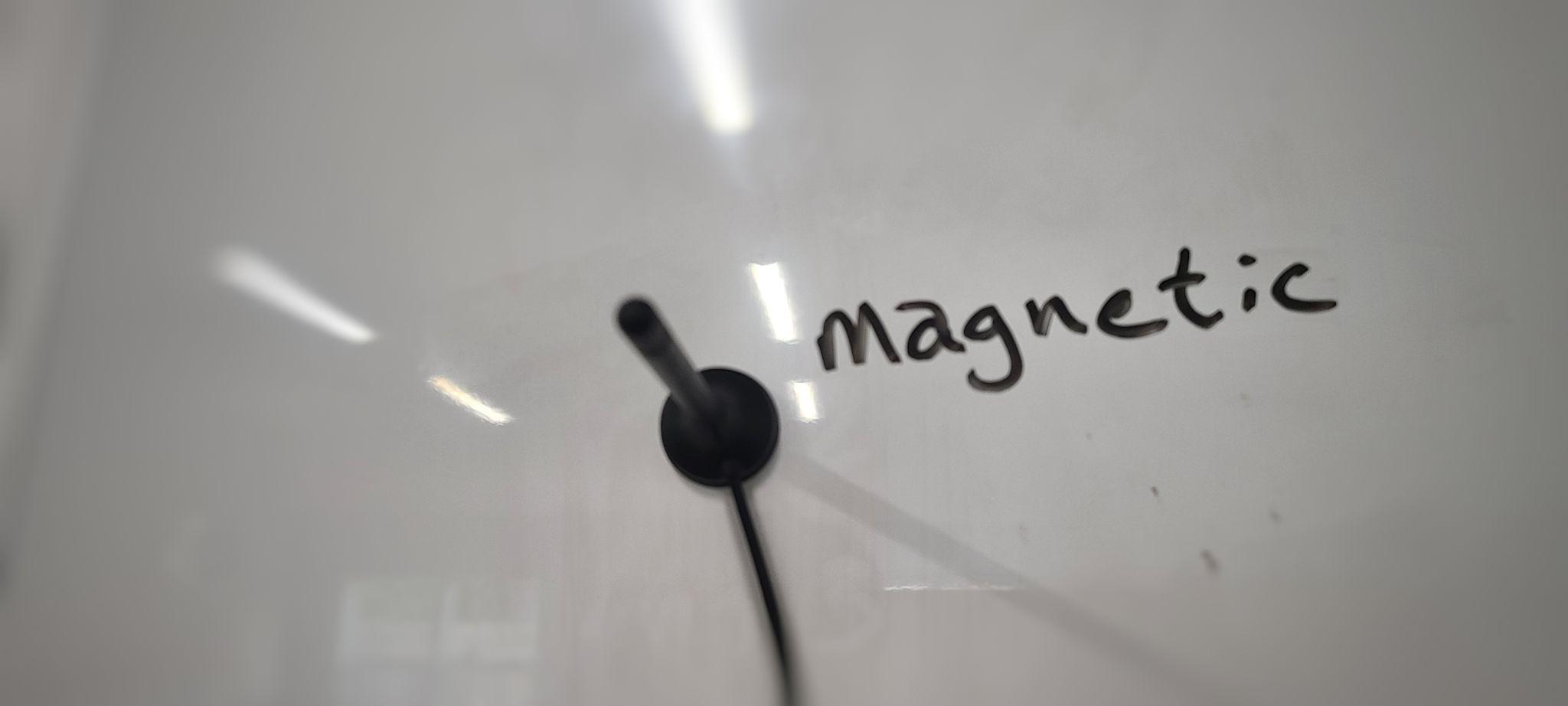

Example of mount
Additional Resources and Help!
Still have questions? Please contact us any time at support@ezsoftpos.com.
NOTE: If emailing, please include your business name in the subject line of the email
and provide your preferred contact information for the best response time.
Visit our help center Help Center for more guides and tutorials
